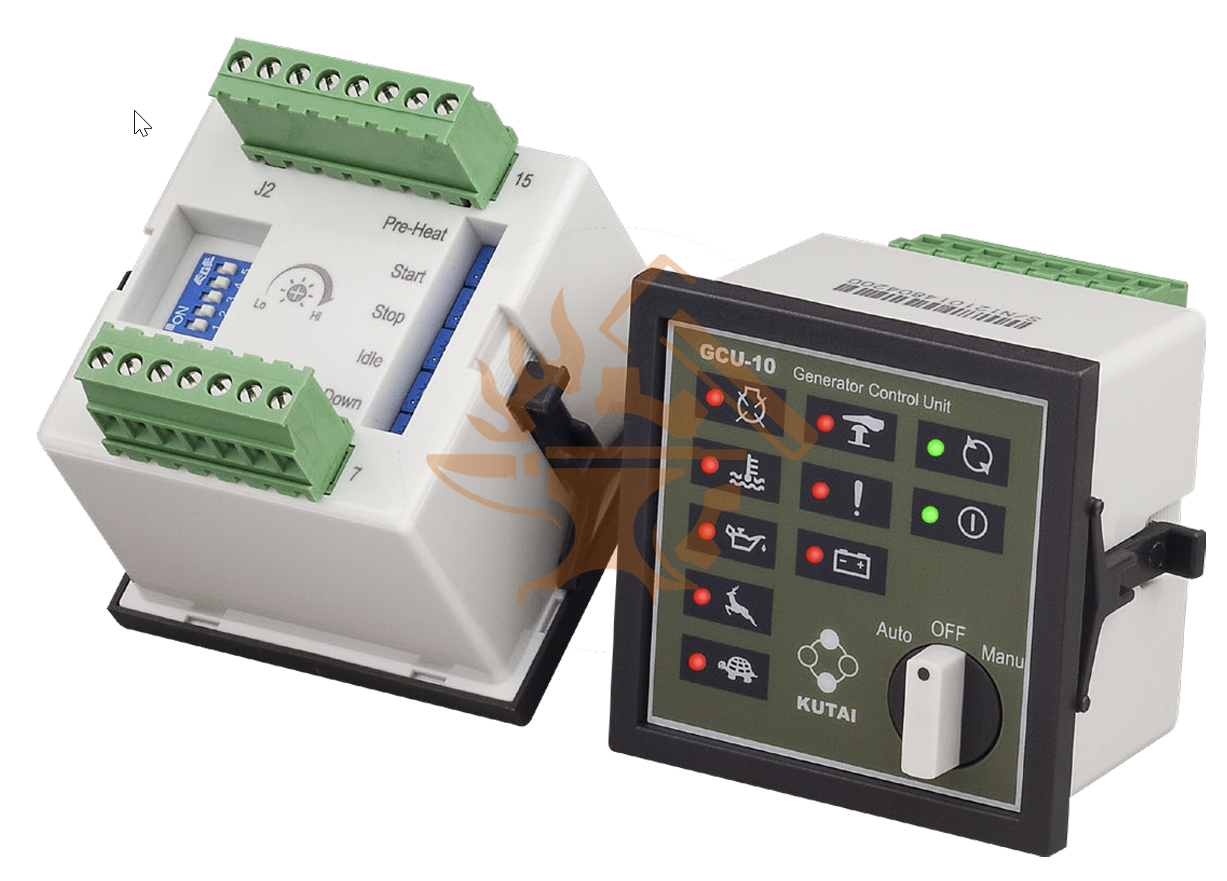

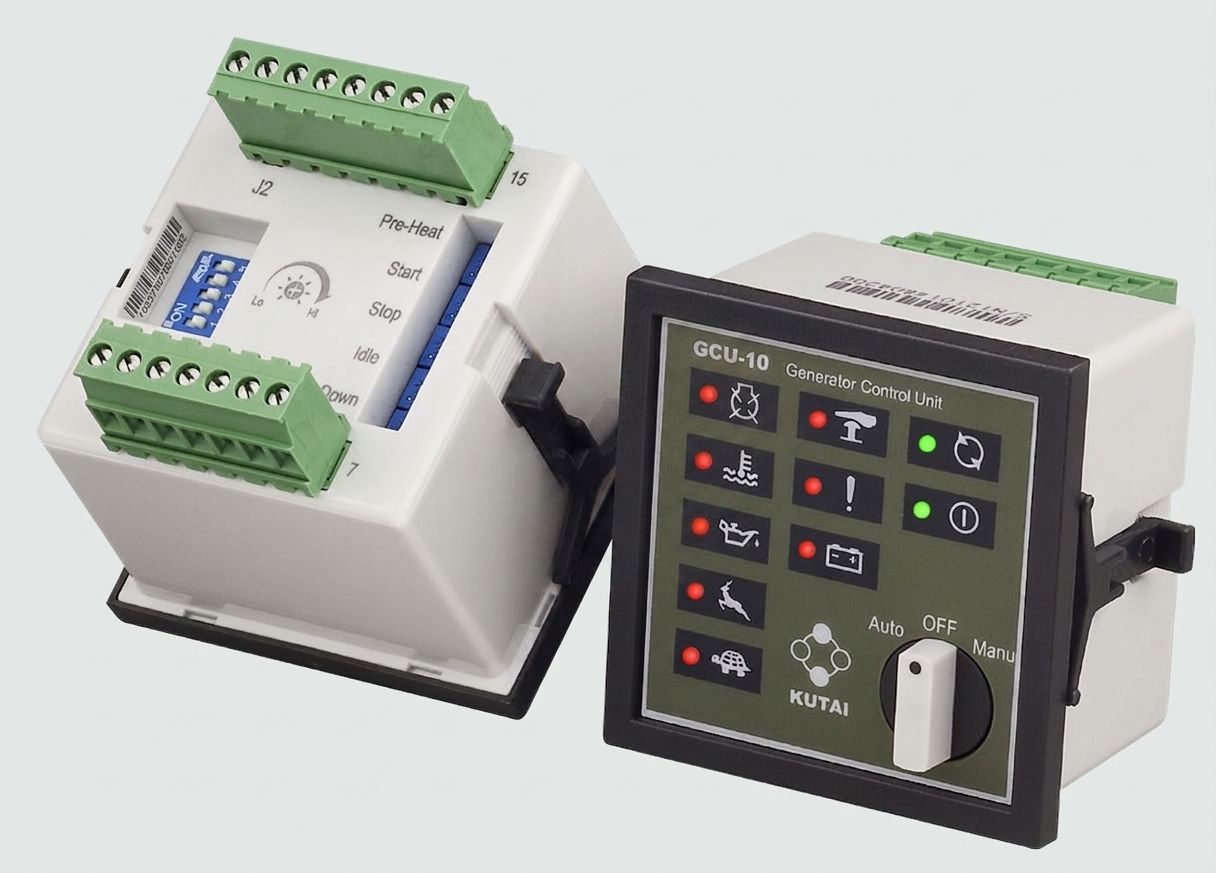

Aftermarket KUTAI GCU-10 Automatic Controller for Generator Control Unit

Please verify that the part number and pictures match the part you are replacing before ordering.

Models/Applications:

Specification:
DC Supply: 9.0 to 36 VDC
Alternator Input Range: Voltage 5~300 VDC Frequency 50~60 Hz
Fuel Solenoid Signal Output: 5 Amp @ 12/24 VDC
Start Signal Output: 5 Amp @ 12/24 VDC
Warm up Signal Output: 5 Amp @ 12/24 VDC
Accessory " ON " Output: 5 Amp @ 12/24 VDC
Idle Control Conductor Capacity: 5 Amp @ 12/24 VDC
Power Consumption: Under 3 VA on Auto
Adjustable Timers:
Engine Pre-Heat: 2~30 sec.
Starter Cranking Time: 1~15 sec.
Energize to STOP: 1~15 sec.
Engine Idle (Governor): 0~300 sec.
Engine Cool-down: 0~300 sec.
Environment:
Operation Temperature: -20~70 °C
Relative Humidity: Maximum 90%
Protection & Alarm Status Indicators: Start Failure, High Water Temperature, Low Oil Pressure, Overspeed, Underspeed, Emergency Stop, Extra Prog. Input, Low Battery Voltage
Panel Installation Cut-Out: 66.0 x 66.0 ±0.5 mm

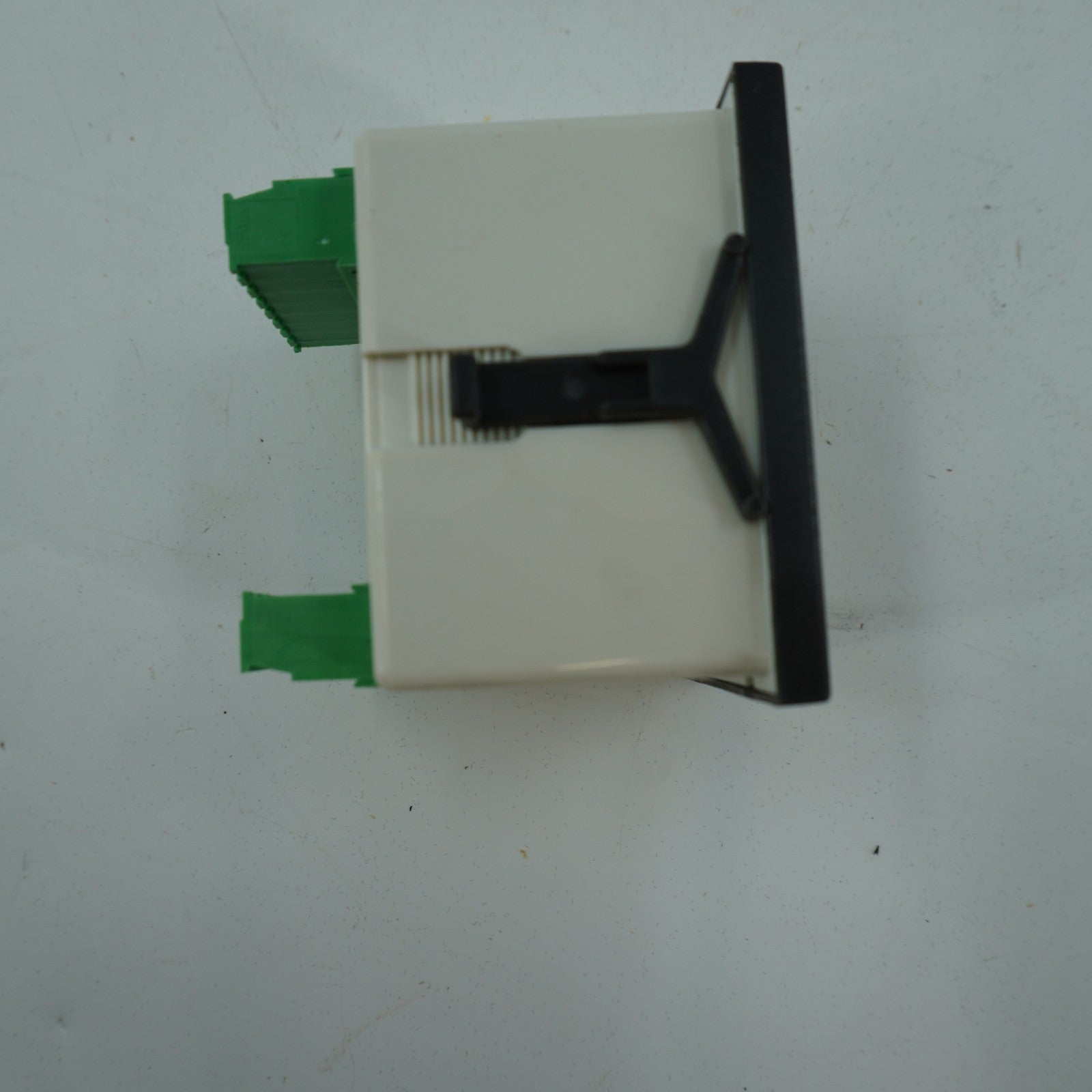

Dimensions: 72.0 (L) x 72.0 (W) x 50.0 (H) mm

Feature:
Microprocessor Based Design

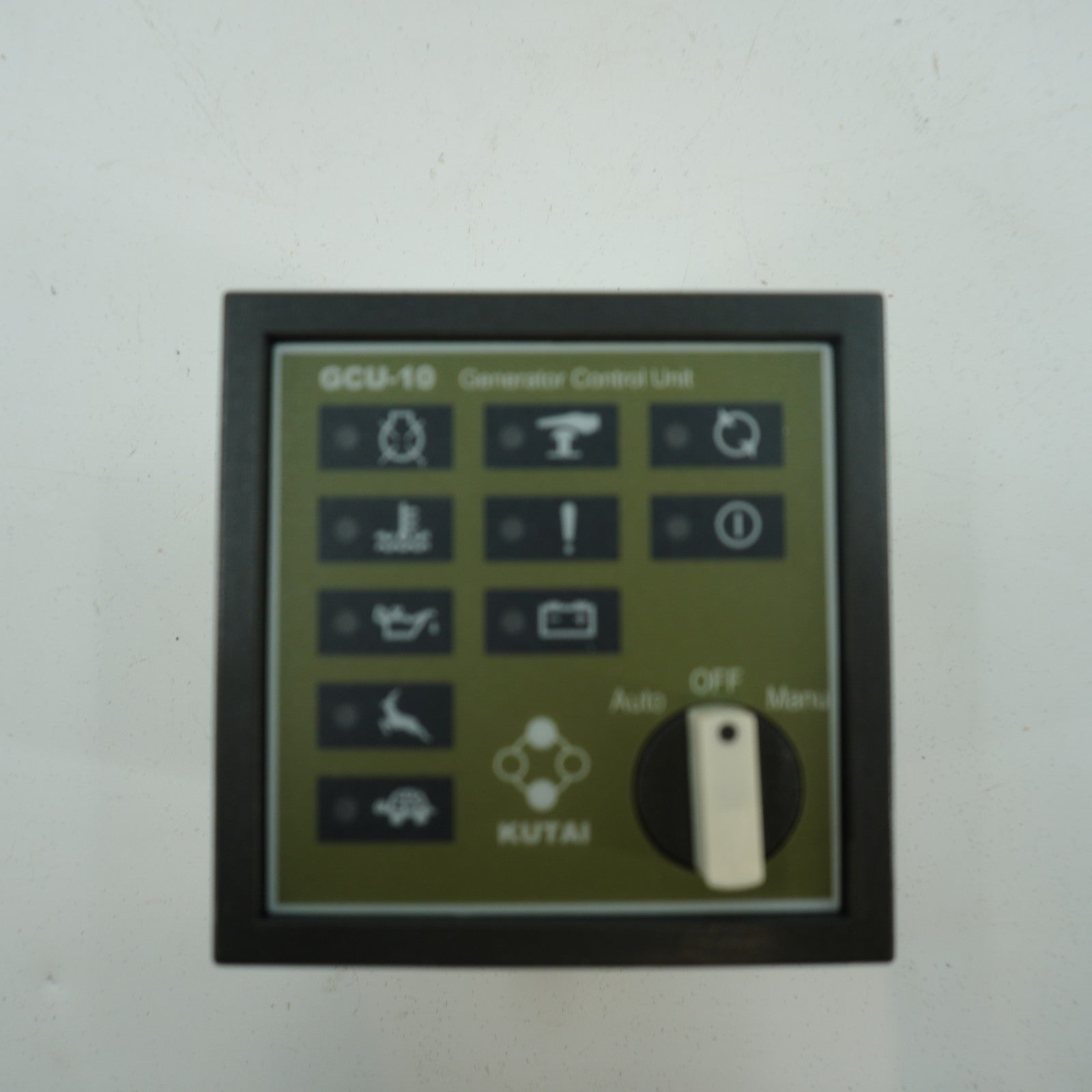

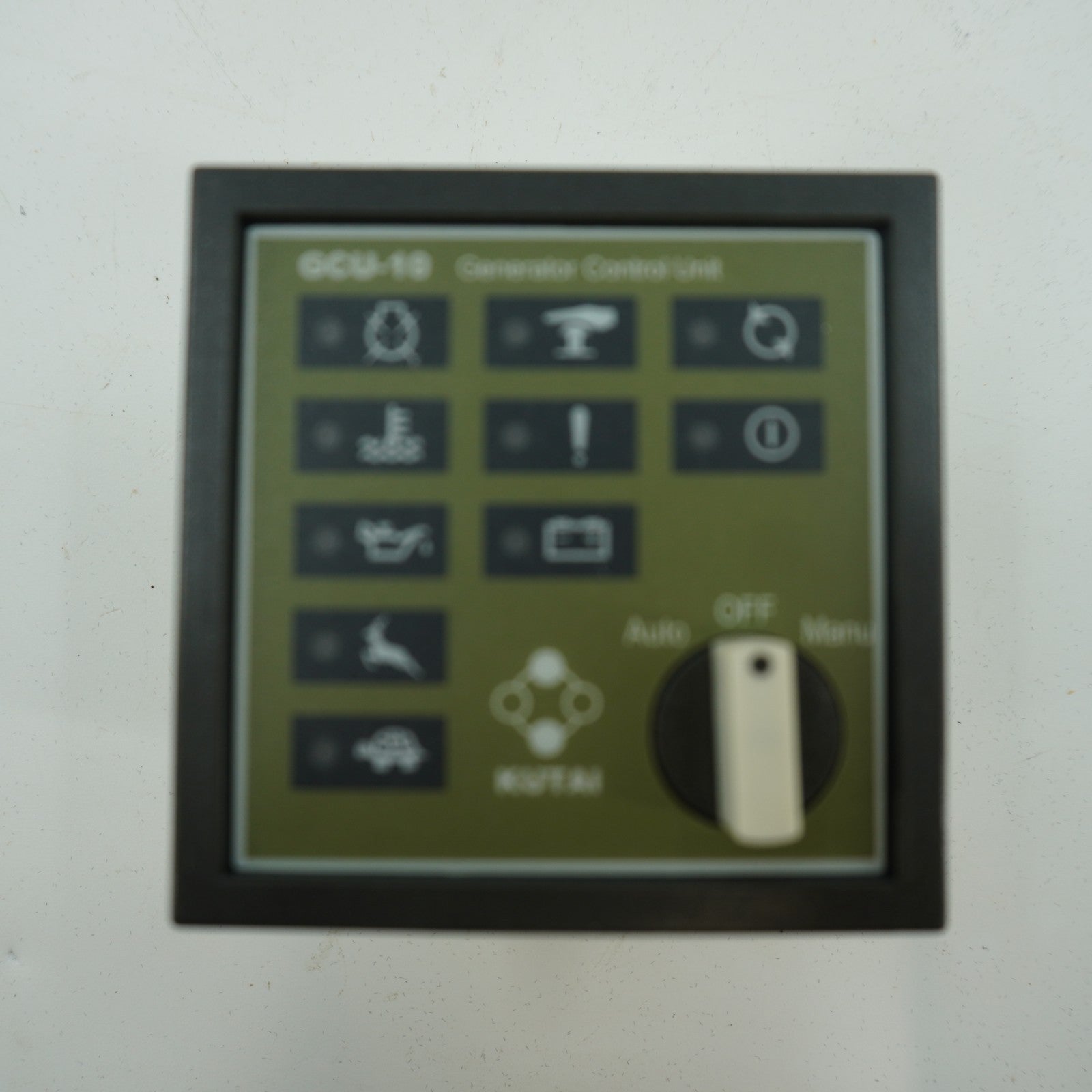

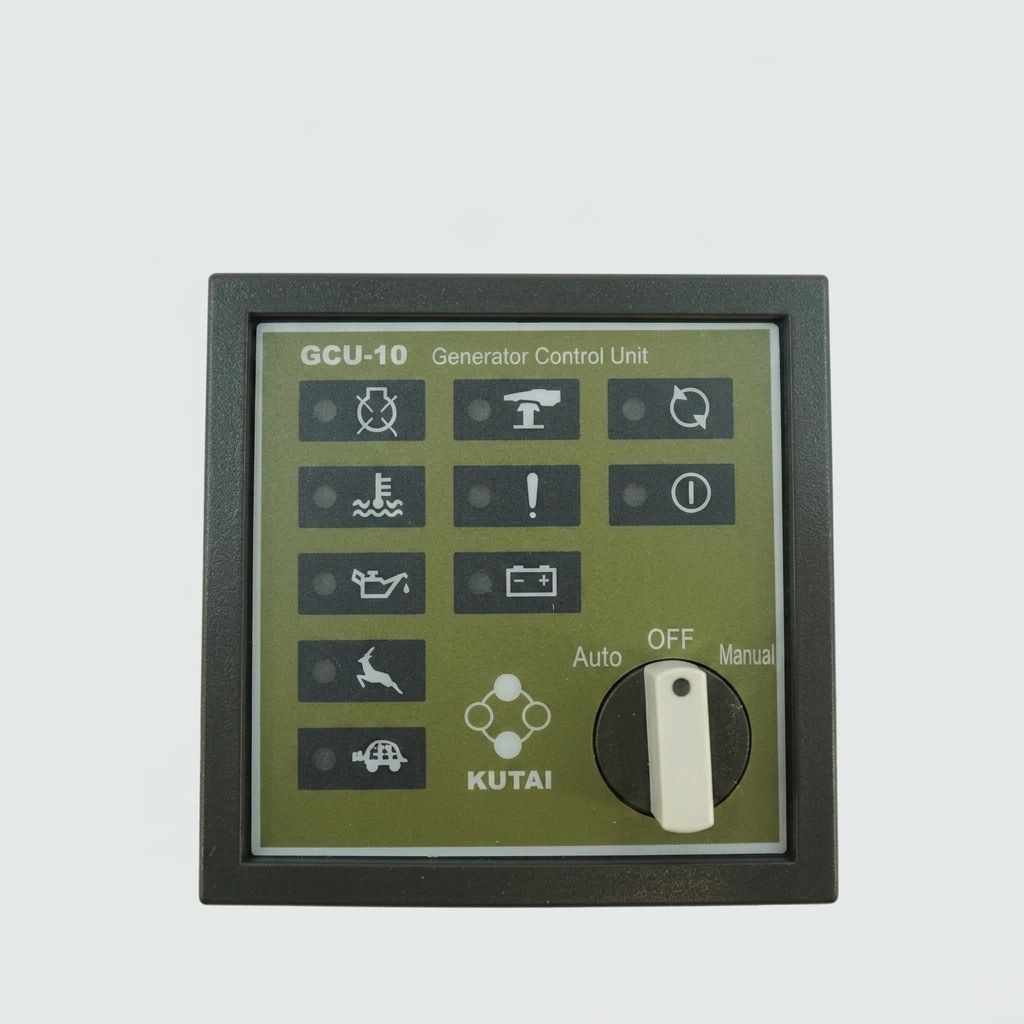

Universal LED Graphic Interface, Displays Generator Status and Failures
Modular Design, Quick Installation
Programmable Engine & Generator Controls Adapts Easily To Any Type Generator Set.
Waterproof Front Panel With UV Protection
Provide IDLE control For Elec. Governors

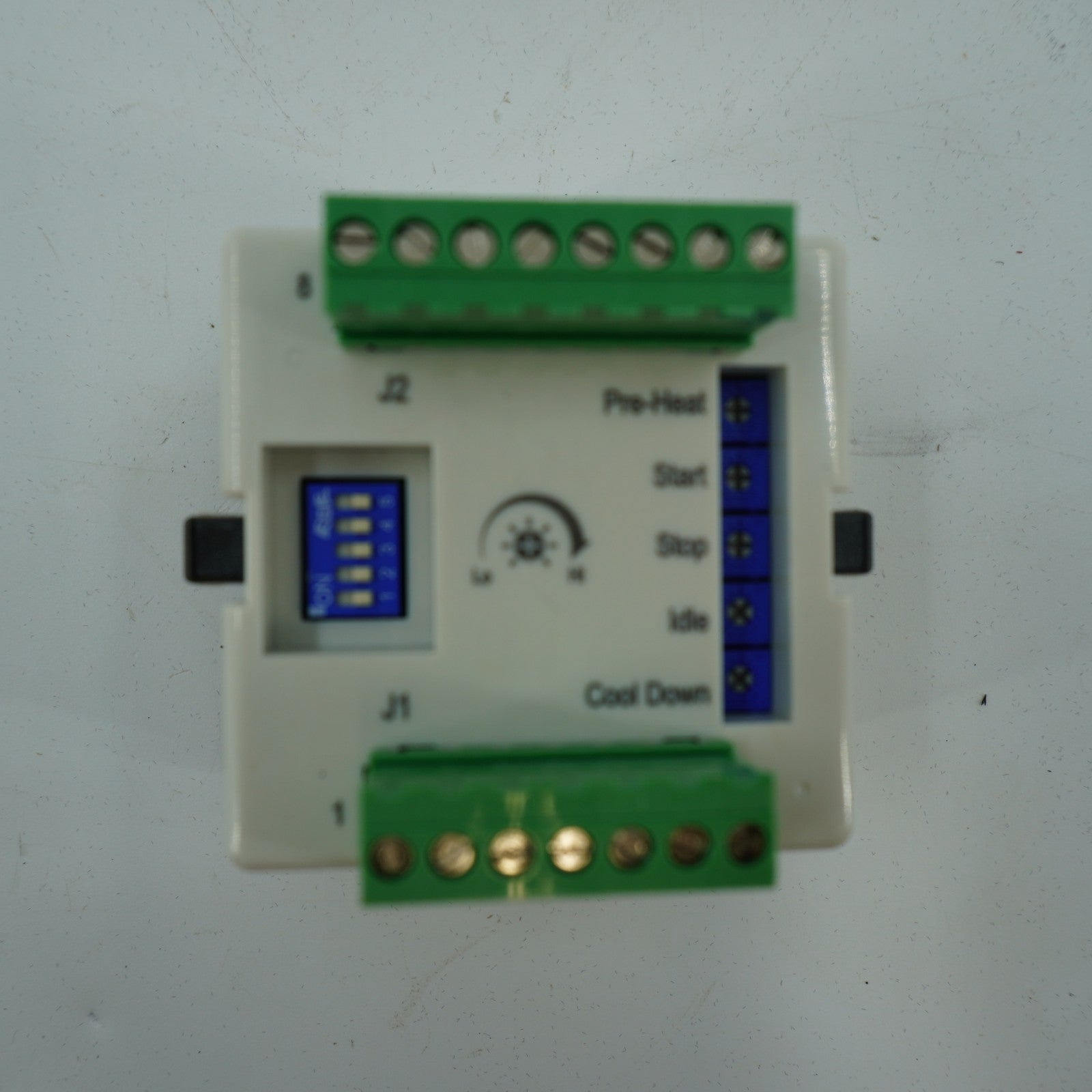

Five Adjustable Time Delay Potentiometers
Five DIP Switches For Specification Setting

Manual: https://www.kutai.com.tw/download/gcu-10/gcu-10-manual-en.pdf

Replacement Part Number(s): GCU-10, GCU10
