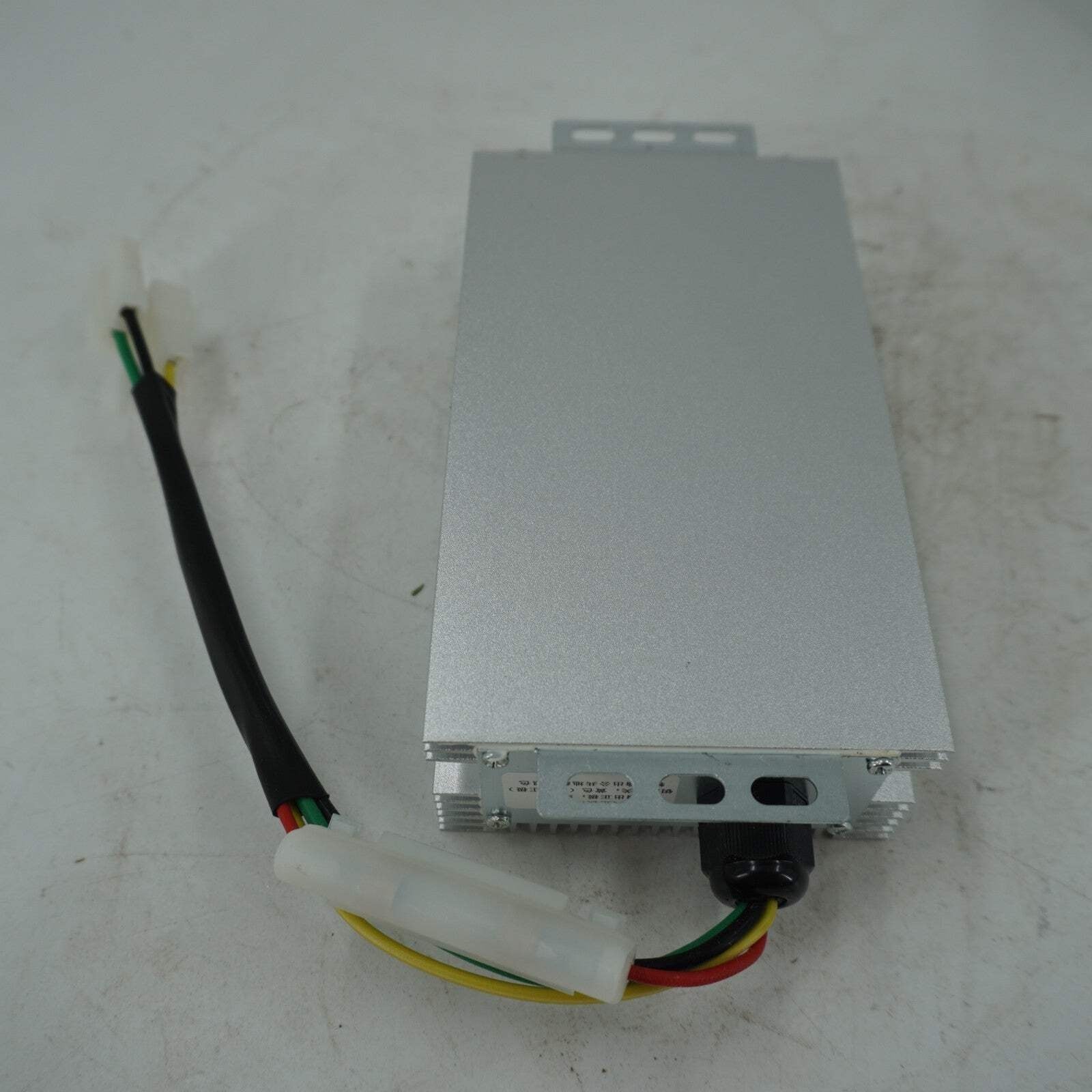

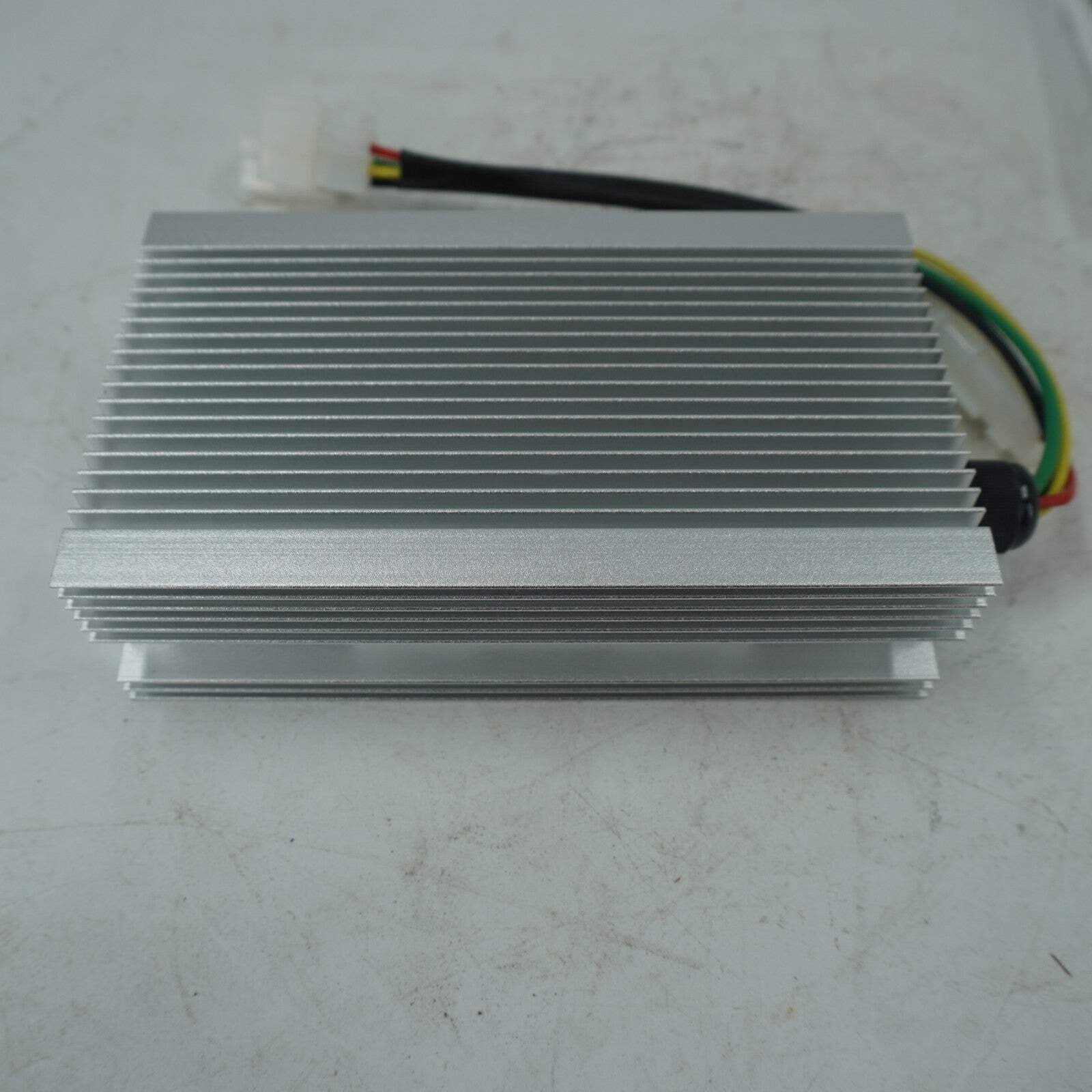

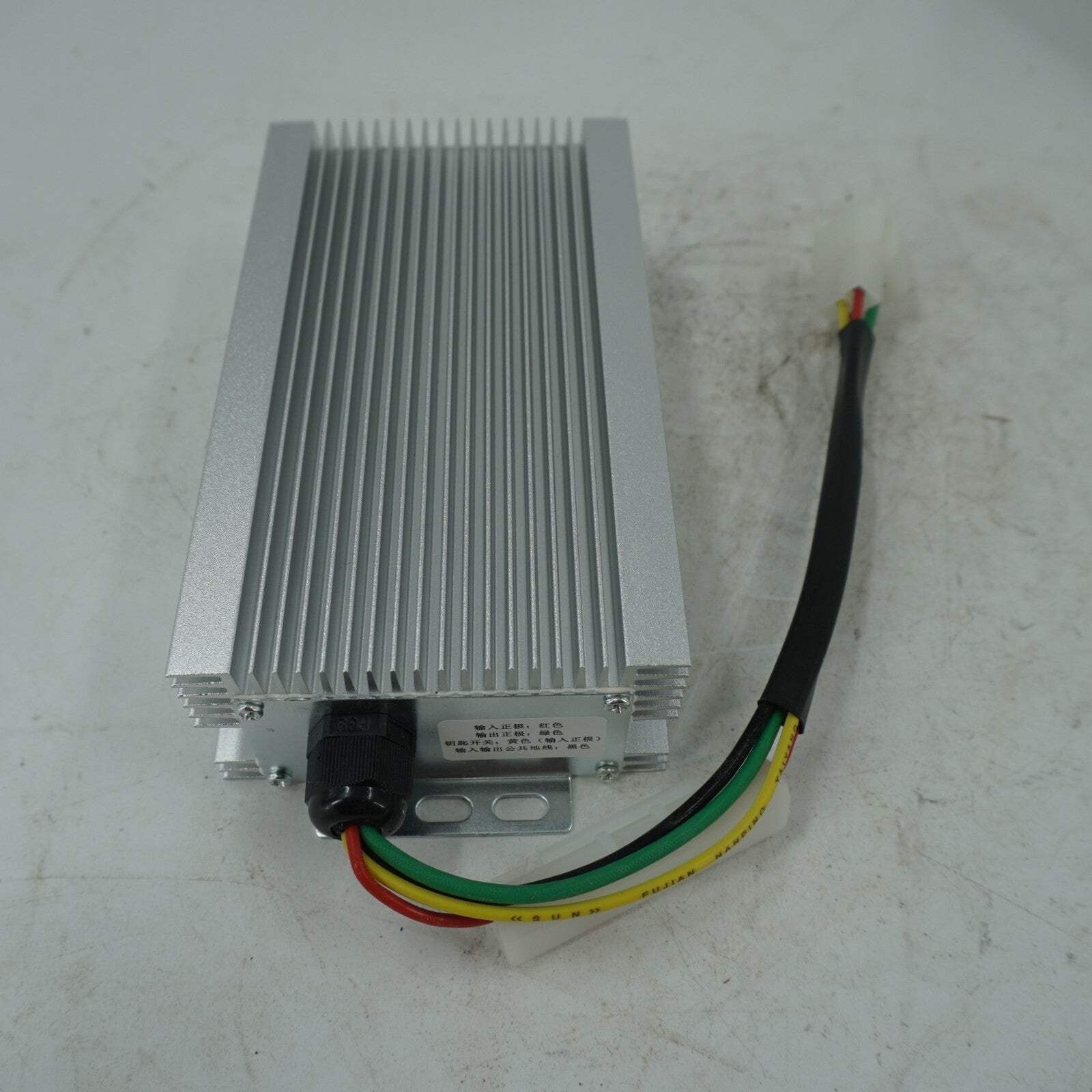

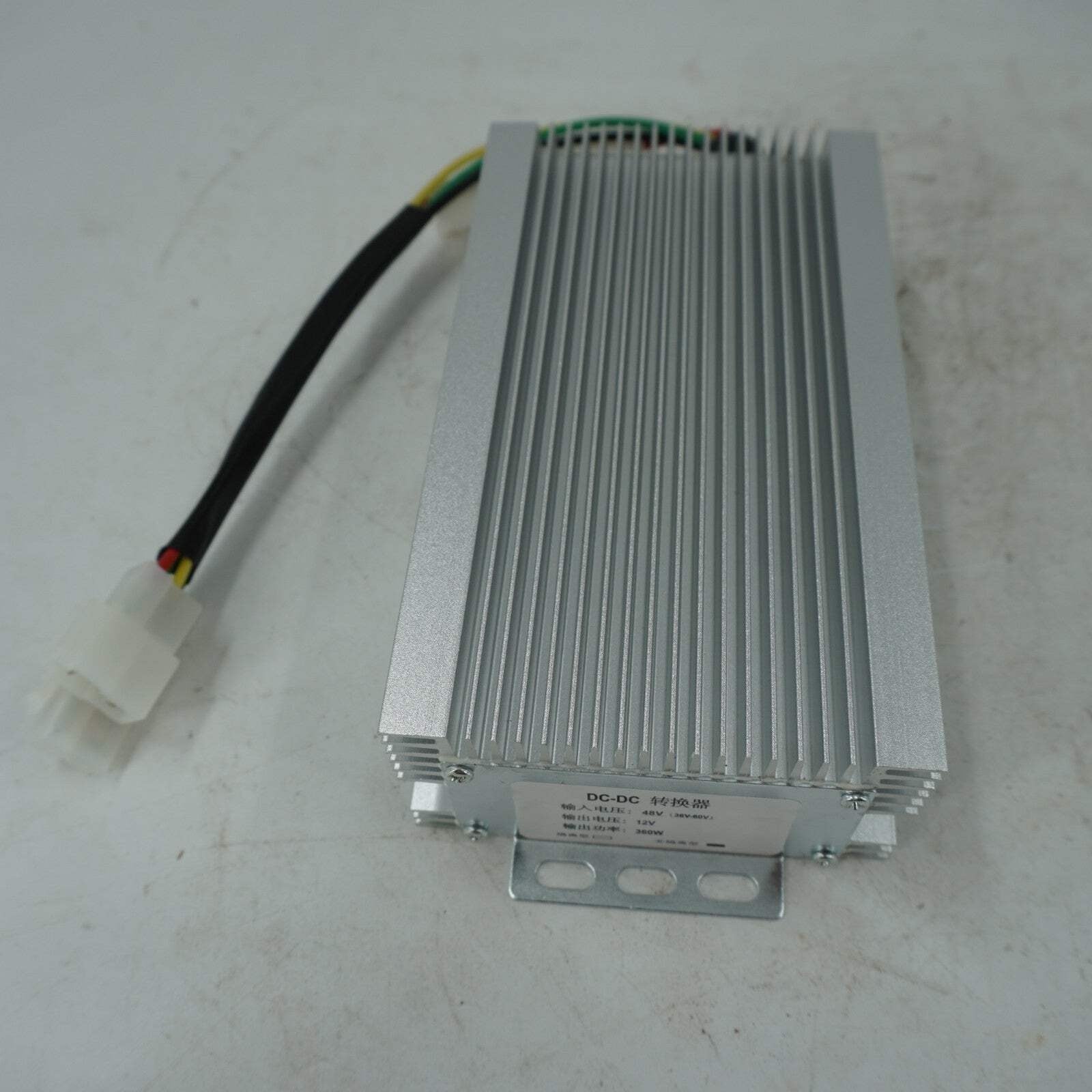

The DC/DC converter uses advanced technology and is specifically configured for electric vehicles, such as golf carts and E-sockets. This unit is designed to supply power to the lamp and audio system. The advantages of high efficiency, stability, and compact size are achieved through advanced high-frequency technology.

Please verify that the part number and pictures match the part you are replacing before ordering.

Not for battery charging.

Specification:

Input Voltage: 48V
Input voltage range: 36V---60V
Output Voltage: DC 12V
Output Current: 30A
Maximum Efficiency: ≥ 90%
Environmental Enclosure: IP55
Shock and Vibration: SAEJ1378
Safety-North America: UL2202/UL1564 2nd Edition
Emissions- North America: FCC Part 15/ICES 003 Class A
Immunity-Europe: EN61000-4-2/3/5/6/11
Operating Temperature: -20℃-50℃
Weight: 0.77kgs
Unit Measures: 185mm*92mm*45mm
