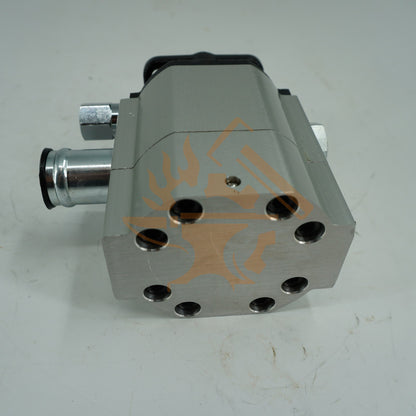

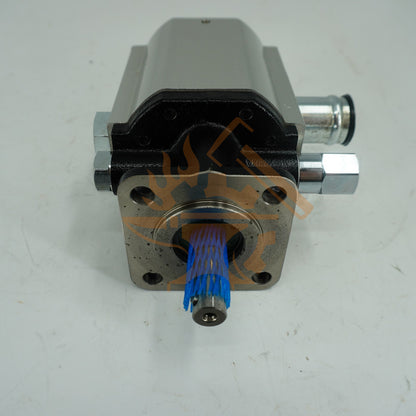

14GPM Hydraulic Gear Pump CBNA-13/1.8 for Log Splitter

Please verify that the part number and pictures match the part you are replacing before ordering.

Models/Applications:

Specification: 0.110 cu. in. / rev. HI press. stage 0.903 cu. in. / rev. LO press. stage (combined gear set) Pump Type:Gear Rotation:CW Orientation:Horizontal or Vertical Pressure:3000 PSI max. Speed:3600 RPM max. Flow MFG Nominal Rated:14 GPM Flow: 1.7 GPM HI press. stage 14.1 GPM LO press. stage Unloading Pressure:400-900 PSI Mount:4 bolt 4F17 Shaft:1/2" dia. x 1-1/2" long keyed Rqd. Filtration:25 micron Inlet Port:1" Hosebarb adjustable orientation Outlet Port:1/2" NPT Size:5-1/4" x 7" x 3-3/8" Application: Fit for Log Splitter

Replacement Part Number(s): CBNA-13/1.8,CBNA1318
